Compact Manual Toilet Series 29090 - Jabsco

JABSCO manual marine toilet in white porcelain, with nylon plunger pump. Turning the knob 90° activates the lock/unlock which prevents overflow and backflow of purge. Seat in white enameled wood. Inlet pipe Ø 20 mm, outlet pipe Ø 38 mm. Can be installed above or below the waterline. Dimensions mm height 340 x width 450 x depth 410 Weight kg. 9.3.

Go to the spare parts list »

Typology
€333.57 -28%
€240.17
FA1939
Quantity

75
Available in stock
Verifica disponibilità in negozio
Order before 12.45
Estimated delivery 02/10/2026

Correlated accessories

Replacement Toilet Pump -...
  • -28%
Marine toilet spare parts
Jabsco

Replacement Toilet Pump - Jabsco

FA1961
€73.76 €102.45
Jabsco Manual Toilet Replacement Pump
Jabsco Grey Handle Pump...
  • -28%
Marine toilet spare parts
Jabsco

Jabsco Grey Handle Pump Valve and Seal Kit

FA1963
€69.75 €96.88
Jabsco Gray Handle Pump Valve and Seal Kit
Jabsco Blue Handle Pump...
  • -28%
Marine toilet spare parts
Jabsco

Jabsco Blue Handle Pump Valve and Seal Kit

FA1964
€71.76 €99.67
Jabsco Blue Handle Pump Valve and Seal Kit
Jabsco Compact Toilet Hinges
  • -28%
Marine toilet spare parts
Jabsco

Jabsco Compact Toilet Hinges

FA1971
€18.03 €25.04
Jabsco Compact Toilet Hinges
Jabsco Regular Toilet Hinges
  • -28%
Marine toilet spare parts
Jabsco

Jabsco Regular Toilet Hinges

FA1972
€19.12 €26.56
Jabsco Regular Large Toilet Hinges
Jabsco 29017-1000 - Manual Toilet Piston O-Ring
Marine toilet spare parts
Jabsco

Jabsco 29017-1000 - Manual Toilet Piston O-Ring

AF1395
€5.84
Replacement O-ring for Jabsco manual toilet pump piston. Compatible with all Jabsco 29090 and 29120 manual toilets since 1986.
Jabsco 29029-1000 - Exhaust Elbow
Marine toilet spare parts
Jabsco

Jabsco 29029-1000 - Exhaust Elbow

AF1396
€24.35
Compatible with Jabsco toilets 29090, 290120, 29100, 29200 and 58XX0 (part of 58109-1000)
Jabsco 29041-1000 - Manual Toilet Base
Marine toilet spare parts
Jabsco

Jabsco 29041-1000 - Manual Toilet Base

AF1397
€125.51
Compatible with all Jabsco 29090 and 29120 series manual toilets.
Jabsco 29042-0000 - Upper Valve Seal
Marine toilet spare parts
Jabsco

Jabsco 29042-0000 - Upper Valve Seal

AF1398
€20.80
Compatible with all Jabsco manual toilets from the 29090 and 29120 series from year of manufacture 1986
Jabsco 29043-0000 - Lower Valve Seal
Marine toilet spare parts
Jabsco

Jabsco 29043-0000 - Lower Valve Seal

AF1399
€24.52
Compatible with all Jabsco manual toilets from the 29090 and 29120 series from year of manufacture 1986
Jabsco 29044-0000 - Seal Housing
Marine toilet spare parts
Jabsco

Jabsco 29044-0000 - Seal Housing (Before 1997)

AF1400
€22.56
Compatible with all Jabsco manual toilets of the 29090 and 29120 series from the years of manufacture 1986 - 1997
Jabsco 29044-2000 - Seal Housing
Marine toilet spare parts
Jabsco

Jabsco 29044-2000 - Seal Housing (1998 to 2007)

AF1401
€21.73
Compatible with all Jabsco 29090 and 29120 manual toilets manufactured from 1998 to 2007.
Jabsco 29044-3000 - Seal Housing
Marine toilet spare parts
Jabsco

Jabsco 29044-3000 - Seal Housing (from 2008)

AF1402
€22.87
Compatible with all Jabsco 29090 and 29120 manual toilets manufactured after 2008.
Jabsco 29046-3000 - Toilet Plunger
Marine toilet spare parts
Jabsco

Jabsco 29046-3000 - Toilet Plunger

AF1403
€59.43
Piston, rod, and O-ring assembly. Compatible with all Jabsco 29090 and 29120 series manual toilets manufactured since 1986.
Jabsco 29047-0000 - Toilet Mounting Kit
Last items in stock
Marine toilet spare parts
Jabsco

Jabsco 29047-0000 - Toilet Mounting Kit

AF1404
€38.13
Compatible with all Jabsco manual toilets from the 29090 and 29120 series from the year of manufacture 1986
Jabsco 29051-2000 - Pump Cylinder Kit
Marine toilet spare parts
Jabsco

Jabsco 29051-2000 - Pump Cylinder Kit

AF1405
€96.36
Compatible with all Jabsco manual toilets from the 29090 and 29120 series from year of manufacture 1986
Jabsco 29091-1000 - Exhaust Flange
Out-of-Stock
Marine toilet spare parts
Jabsco

Jabsco 29091-1000 - Exhaust Flange

AF1409
€13.80
Compatible with all Jabsco toilets / conversion kits 29090, 290120, 29100, 29200 and 58XX0
View
Jabsco 29092-1000 - Check Valve Jabsco 29092-1000 - Check Valve 2
Marine toilet spare parts
Jabsco

Jabsco 29092-1000 - Check Valve

AF1410
€20.18
Compatible with all Jabsco toilets/conversion kits 29090, 290120, 29100, 29200 and 58XX0 series
Jabsco 29094-3000 - Pump Cover Kit
Marine toilet spare parts
Jabsco

Jabsco 29094-3000 - Pump Cover Kit

AF1411
€91.39
Compatible with all Jabsco 29090 and 29120 series manual toilets manufactured from 1986 onwards.
Jabsco 29097-1000 - Compact Toilet Seat/Lid
Marine toilet spare parts
Jabsco

Jabsco 29097-1000 - Compact Toilet Seat/Lid

AF1413
€145.52
Seat, lid, and hinge set for compact toilets. Compatible with all Jabsco manual toilets from the 29090 series built after 1986, as well as the 37010-009X, 37010-309X, 37045-009X, 37045-309X, 37245-009X, and 37245-309X series.
Jabsco 29127-1000 - Regular Toilet Seat/Lid
Marine toilet spare parts
Jabsco

Jabsco 29127-1000 - Regular Toilet Seat/Lid

AF1417
€179.83
Seat, lid, and hinge set for regular toilets. Compatible with all Jabsco 29120 series manual toilets built after 1986, as well as the 37010-109X, 37045-109X, 37245-109X, and 37X75 series.
Jabsco 58104-1000 - Regular Toilet Seat and Lid Set Jabsco 58104-1000 - Regular Toilet Seat and Lid Set 2
Marine toilet spare parts
Jabsco

Jabsco 58104-1000 - Regular Toilet Seat and Lid Set

AF1444
€173.76
Compatible with standard Jabsco toilets, including manual and electric models. Dimensions: Seat: 401 mm x 365 mm (15.8" x 14.4") Lid: 402 mm x 365 mm (15.8" x 14.4") Mounting hole spacing (lid): 155 mm (6.1")

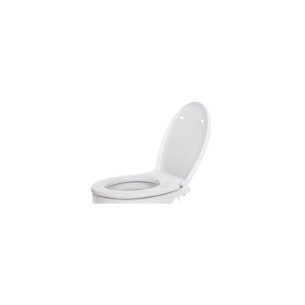

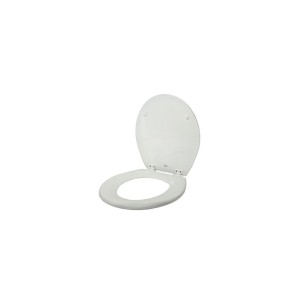

Jabsco 58104-2000 - Regular Soft Close Toilet Seat and Lid Set Jabsco 58104-2000 - Regular Soft Close Toilet Seat and Lid Set 2
Marine toilet spare parts
Jabsco

Jabsco 58104-2000 - Regular Soft Close Toilet Seat and Lid Set

AF1445
€194.84
Compatible with Jabsco 58XX0-2, 58XX0-3, 29120-5, 37010-4 and 37X45-4 comfort size toilets from year of manufacture 2018. The soft-close mechanism ensures quiet and smooth operation of the lid. Seat dimensions: Length: 420 mm Width: 365 mm Height: 40 mm Lid dimensions: 423 mm x 365 mm with 155 mm spacing between mounting holes for convenient installation.
Jabsco 58105-1000 Toilet Hinge Set
Marine toilet spare parts
Jabsco

Jabsco 58105-1000 Toilet Hinge Set

AF1446
€34.94
Fits axle/cover assembly 58104-1000
Jabsco 58107-1000 - Toilet Elbow and Gasket Fitting Kit
Marine toilet spare parts
Jabsco

Jabsco 58107-1000 - Toilet Elbow and Gasket Fitting Kit

AF1448
€42.55
Compatible with Jabsco toilets 29090, 29120, 37010, 37045, 37245, 37055, 37255, 58XX0

Alternative products



Product Details

Weight
9.3 kg.
Width
450 mm.
Height
340 mm.
Model
Compact
Outlet pipe diameter
38 mm dia.
Inlet pipe diameter
Ø 20 mm.
Mug
White porcelain
Tablet
White enamelled wood
Depth
410 mm.
Original Reference
29090-5000
671880628273

Description

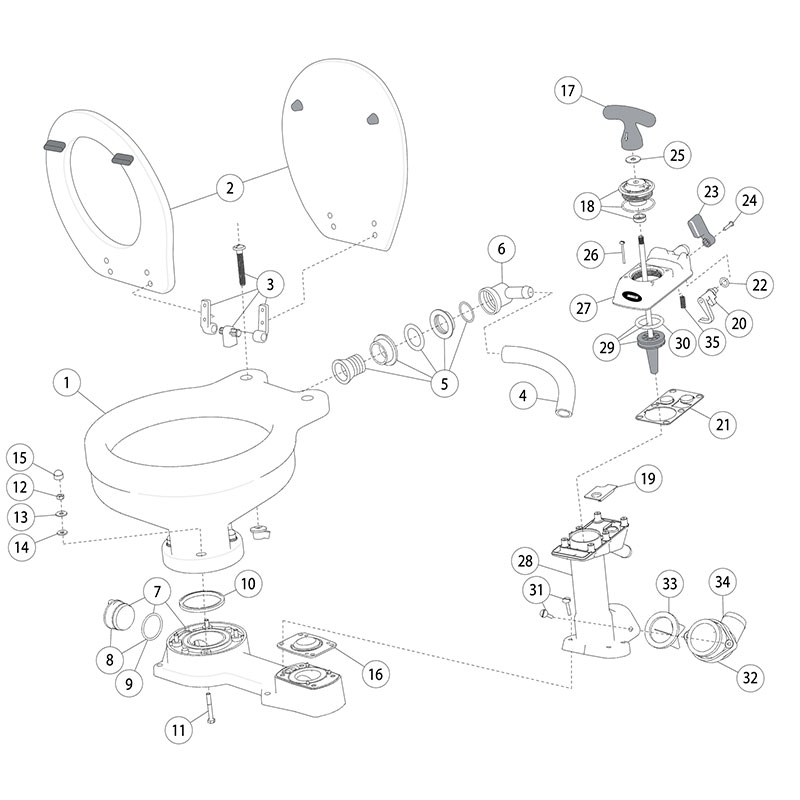

Jabsco Compact WC Series 29090 and 29120 Exploded View

Each number in the image corresponds to a spare part. You can find the original part number in the table below. The codes highlighted in orange are clickable and allow you to purchase the part directly. For any questions or support, contact assistenza@hinelson.com

Ref. Description Original code
1 Compact toilet bowl (small) 29096-1000
1 Regular toilet bowl (large) 29126-1000
2 Compact axle and lid - small (all variants) 29097-1000
2 Standard Axle and Lid - Large (Pre 2018) 29127-1000
2 Standard axle and lid - large (From 2018) 58104-1000
2 SOFT CLOSE axle and lid (From 2018) 58104-2000
3 Compact Hinge Set - Small (All Variants) 29098-1000
3 Standard Hinge Set - Large (Pre 2018) 29098-2000
3 Standard Hinge Set - Large (From 2018) 58105-1000
3 SOFT CLOSE hinge set (From 2018) 58105-2000
4 White toilet tube compact (small) 29035-1000
4 Standard white toilet hose (large) 29035-1001
5 + 6 Toilet bowl connection 58107-1000
7 Toilet base 29041-1000
8 Inspection cap 29028-2000
16 Lower valve 29043-0000
18 Sealing rings (before 1997) 29044-0000
18 Sealing rings (from 1998 to 2007) 29044-2000
18 Sealing rings (since 2008) 29044-3000
21 Upper valve 29042-0000
29 Piston 29046-3000
30 Piston O-ring 29017-1000
32 Exhaust flange 29091-1000
33 Non-return valve 29092-1000
34 Exhaust elbow 29029-1000
Manual pump 29040-3000
Toilet Repair Kit (Black Handle) 29045-0000
Toilet Repair Kit (grey handle) 29045-2000
Toilet Repair Kit (blue handle) 29045-3000
Pump cylinder kit 29051-2000
Pump cover kit 29094-3000
Toilet assembly kit 29047-0000
