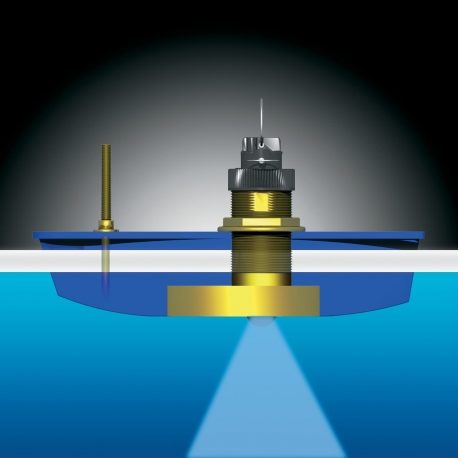

B744V through-hull transducer - Raymarine
B744V through-hull transducer - Raymarine

B744V pass-through transducer - Raymarine

The B744V is a TRIDUCER® multisensor featuring depth, velocity, and temperature in a single housing. The single 50/200 kHz, dual-frequency ceramic element provides excellent target detail in shallow water at 200 kHz and good bottom tracking in deep water at 50 kHz.

€695.00
HA2065
Quantity

100
Available in stock
Verifica disponibilità in negozio
Order before 09.00
Estimated delivery 03/11/2026

Alternative products



Product Details

Material
Bronze
Compatibility
Raymarine Axiom DV Raymarine Axiom Pro RVX Raymarine Axiom RV
Frequency
50/200 kHz
Sonar
CHIRP / Fishfinder
Model
B744V
Original Ref.
A66091
Maximum depth
365 m. (Depth measurement depends on factors such as the type of bottom and other water conditions.)
High-definition scanning
No
Scanning the sides of the boat
No
3D Scanning
No
Brand
Raymarine
Power
600 W
Mounting type
Through installation
Hull angle
From 0° to 24°
For hulls
Fiberglass Wood
Displayed data
Depth Speed Temperature
Cable length
10 m.
Connector PIN
8 pins
Compatible with adapter
Axiom Pro RVX with adapter A80496 Axiom RV with adapter A804489 Raymarine Axiom DV with A80485 adapter
Traditional scan
Yes
Transducer Tilt (TILT)
Adjustable (Fairing Block)

Description

The only pass-through transducer that offers depth , velocity and temperature in one, this 600 W 8-pin triducer has a depth of 800-1,200 feet (244-366 meters); an operating frequency of 50-200 kHz; a beam width of 45-12 degrees; and a tilt of 0-24 degrees.

Installation instructions are included with the transducer. Follow the instructions carefully to avoid damage to the vessel.
